Introduction

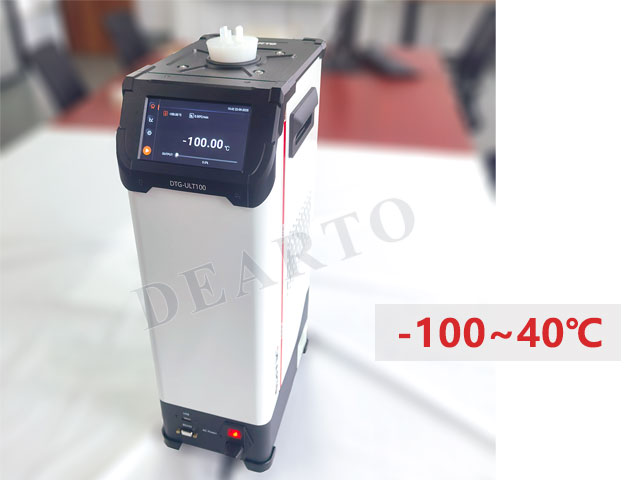

The DTG-100G Ultra-low Temperature Smart Dry Block Calibrator is a reliable and stable low-temperature constant temperature source suitable for both field and laboratory use. It meets the requirements of on-site calibration applications in terms of accuracy, speed, stability, and portability. Designed with a strong focus on user needs in field environments, the instrument combines lightweight construction, portability, and rapid operation while delivering stability, consistency, and accuracy comparable to similar laboratory equipment.
Product Features:
● Support bilingual switching between Chinese and English, and support custom switching between ℃ and ℉.
● Multifunctional smart touch screen: high-definition color touch screen, interactive menu mode, rich display information, easy operation, and real-time display of calibration status.
● Convenient and portable: small size, light weight, strong anti-interference, more suitable for on-site calibration.
● On-demand customization service of soaking blocks: support customizing soaking blocks of different sizes and specifications according to the insertion depth and outer diameter of the tested sensor.
● Protection function: The device has a built-in overheating protection function, which is safe and stable.
● Multi-point correction: supports automatic calibration/correction of multiple temperature points; segmented PID control, supports one-key temperature rise, and fully automatic temperature control.
● Communication function: It has RS-232 communication interface, supports data transmission function, can upload to PC and save data automatically.
Technical Parameters
Ultra-Low Temperature Smart Dry Block Calibrator | ||||
Model | DTG-ULT60G | DTG-ULT80G | DTG-ULT100G | DTG-ULT120G |
Temp. range | -60℃ to 40 ℃ | -80℃ to 40℃ | -100℃ to 40℃ | -120℃ to 40℃ |
Display resolution | 0.01℃ | |||
Dimensions (L×W×H ) | 168×273×515 (mm) | |||
Weight | Approx.12 kg | |||
Display accuracy | ±0.2 ℃ (full range) | |||
Radial stability | ±0.1 ℃ (full range) | |||
Stability | ±0.03 ℃ (full range) | |||
Hole sizes of | Insertion Block Diameter：Φ30; Please specify the insertion depth and outer diameter of the sensor to be calibrated when placing an order (customizable). | |||
Language/unit | Chinese / English Language Switch; ℃ and ℉ Unit Toggle | |||
Control method | Smart Touchscreen with Multi-Point Calibration | |||
Power supply | 220 V / 50 Hz（or 110 V / 60 Hz） | |||
