Introduction

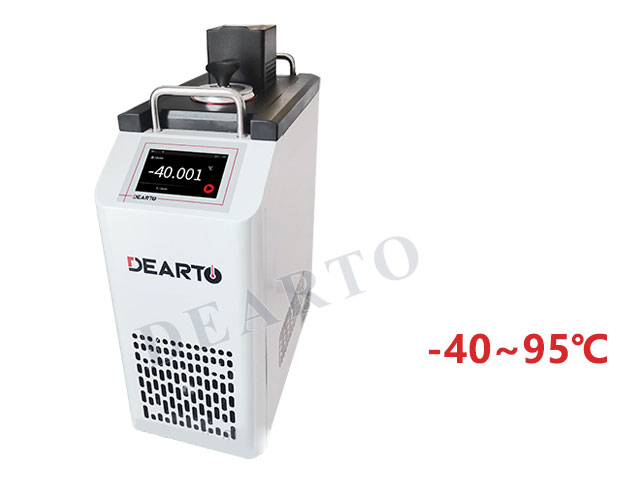

DTS-95BG Portable Smart Refrigerated Calibration Bath is a high-precision, self-regulating temperature calibration device. It features excellent stability, a uniform temperature field, and accurate temperature control. Utilizing a fully enclosed compressor refrigeration system and intelligent PID regulation, it achieves automatic temperature control. The unit has a compact structure, is lightweight, portable, and durable. It is suitable for on-site calibration/verification of various temperature sensors, including industrial platinum resistance thermometers, low-temperature thermocouples, sheathed thermocouples, working liquid-in-glass thermometers, standard mercury thermometers, bimetal thermometers, and pressure thermometers.
DTS-95BG Portable Smart Refrigerated Calibration Bath is a kind of high precision automatic temperature calibration device, which has the characteristics of stable performance, uniform temperature field, accurate temperature control, etc. Fully enclosed refrigeration system, intelligent PID adjustment to achieve automatic temperature control.
DTS-95BG portable calibration bath is compact in structure, light in weight and easy to carry. It is suitable for on-site verification/calibration of all kinds of temperature sensors.(Special index products can be customized according to requirements)
Features
1.Ultra-Wide Temperature Range: -40 °C to 180 °C, achieving broader coverage without the need to change media across the entire range.
2.Unaffected by ambient conditions: The -40 ?°C calibration point remains stable and unaffected in ambient temperatures ranging from 15?°C to 35?°C.

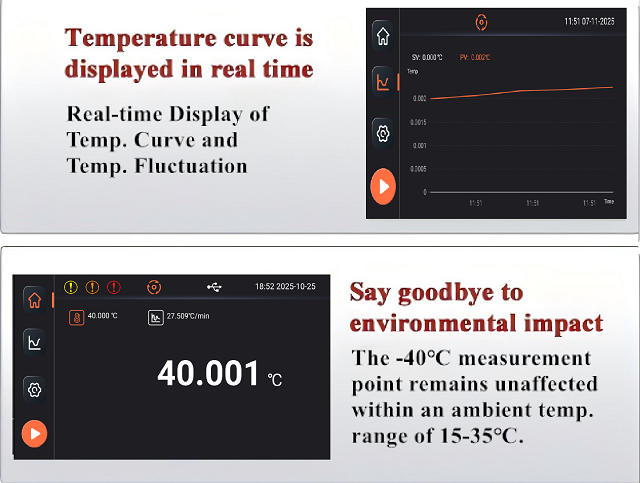

3.Smart touchscreen interface: Smart touchscreen control with 0.001°C resolution. Real-time display of temperature curve and fluctuation.
4.Multi-point calibration: Supports calibration at multiple temperature points; temperature sensors allow segmented multi-point correction with fully automatic segmented control.
5.Fully Automatic Multi-Stage Temperature Control: Rapid heating with minimal overshoot. Micro-circulation technology ensures a uniform and stable temperature field.
6.Communication functionality: Equipped with RS-232 communication port for connection with an upper-level host system.

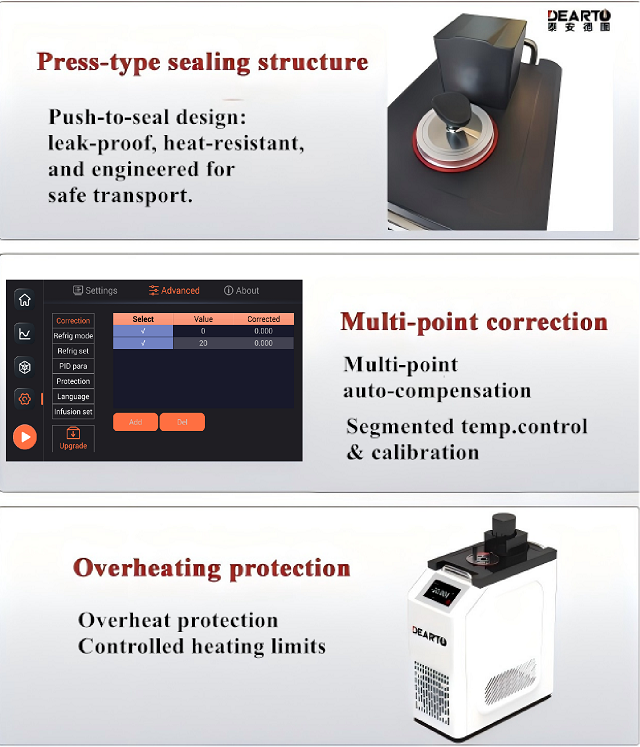

7.Press-seal design: Features a quick-press sealing structure for leak prevention and convenient on-site transport.
8.Overheat protection: Includes over-temperature protection and heating limit functions for safe and reliable operation.
Technical index
Product name | Portable Smart Refrigerated Calibration Bath | Micro model | |||||
Model | DTS-10BG | DTS-20BG | DTS-30BG | DTS-95BG | DTS-125BG | DTS-40BG | DTS-30BG-mt |
Temp. range (℃) | -10 ~180 | -20 ~ 150 | -30 ~150 | -40~ 95 | -40~125 | -40~150 | -30~150 |
-20 ~180 | -30 ~180 | -40~180 | -30~180 | ||||
Control method | Touch screen | Touch screen | |||||
Display resolution (℃) | 0.001℃ | 0.001 | |||||
Temp. stability (℃/10min) | ±0.02( 0 ℃ ) | ±0.02 (0℃) | |||||
Temp. uniformity (℃) | ≤0.02 (0 °C)； ≤0.01 (100 °C) | ≤0.02°C (0 °C); ≤0.01°C (100 °C) | |||||
Bath liquid | L40N-180 | L40N-180 | |||||
Access opening × depth (mm) | Φ80 × 280 ; customizable: Φ100 × 280 | Φ60×250 | |||||
Dimensions | 225×430×500 | 185×331×400 | |||||
Power (kW) | 1 kW | 1 kW | |||||
Heating time | -40°C to 0°C: 2°C/min; 0°C to 100°C: 4°C/min; 30°C to 180°C: 3°C/min | ||||||
Cooling time | 0.8 °C/min | ||||||
Remarks | Flange size can be customized according to customer needs. | ||||||
