Introduction

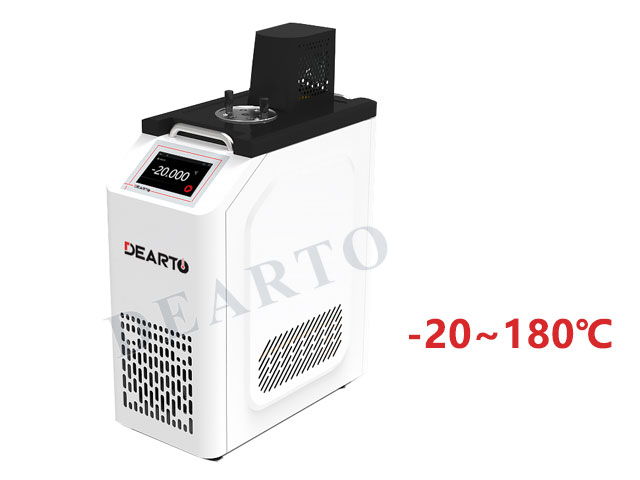

DTS-20BG Portable Smart Refrigerated Calibration Bath is a high-precision, self-regulating temperature calibration device. It features excellent stability, a uniform temperature field, and accurate temperature control. Utilizing a fully enclosed compressor refrigeration system and intelligent PID regulation, it achieves automatic temperature control.
The unit has a compact structure, is lightweight, portable, and durable. It is suitable for on-site calibration/verification of various temperature sensors, including industrial platinum resistance thermometers, low-temperature thermocouples, sheathed thermocouples, working liquid-in-glass thermometers, standard mercury thermometers, bimetal thermometers, and pressure thermometers.(Special index products can be customized according to requirements)
Features
1.Ultra-Wide Temperature Range: -40 °C to 180 °C, achieving broader coverage without the need to change media across the entire range.
2.Unaffected by ambient conditions: The -40 ?°C calibration point remains stable and unaffected in ambient temperatures ranging from 15?°C to 35?°C.
3.Intelligent rapid cooling: Cooling from 150?°C to 25?°C takes as short as 30 minutes and passes multi-cycle hysteresis testing.

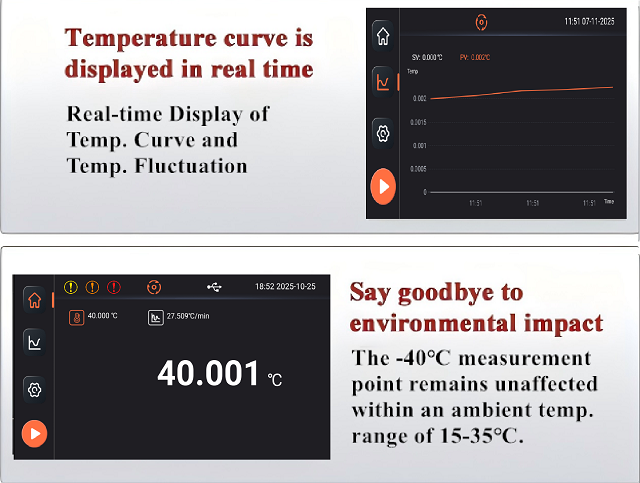

4.Smart touchscreen interface: Smart touchscreen control with 0.001°C resolution. Real-time display of temperature curve and fluctuation.
5.Multi-point calibration: Supports calibration at multiple temperature points; temperature sensors allow segmented multi-point correction with fully automatic segmented control.
6.Fully Automatic Multi-Stage Temperature Control: Rapid heating with minimal overshoot. Micro-circulation technology ensures a uniform and stable temperature field.
7.Communication functionality: Equipped with RS-232 communication port for connection with an upper-level host system.
8.Press-seal design: Features a quick-press sealing structure for leak prevention and convenient on-site transport.
9.Overheat protection: Includes over-temperature protection and heating limit functions for safe and reliable operation.
Technical index
Product name | Portable Smart Refrigerated Calibration Bath | Micro model | |||||
Model | DTS-10BG | DTS-20BG | DTS-30BG | DTS-95BG | DTS-125BG | DTS-40BG | DTS-30BG-mt |
Temp. range (℃) | -10 ~180 | -20 ~ 150 | -30 ~150 | -40~ 95 | -40~125 | -40~150 | -30~150 |
-20 ~180 | -30 ~180 | -40~180 | -30~180 | ||||
Control method | Touch screen | Touch screen | |||||
Display resolution (℃) | 0.001℃ | 0.001 | |||||
Temp. stability (℃/10min) | ±0.02( 0 ℃ ) | ±0.02 (0℃) | |||||
Temp. uniformity (℃) | ≤0.02 (0 °C)； ≤0.01 (100 °C) | ≤0.02°C (0 °C); ≤0.01°C (100 °C) | |||||
Bath liquid | L40N-180 | L40N-180 | |||||
Access opening × depth (mm) | Φ80 × 280 ; customizable: Φ100 × 280 | Φ60×250 | |||||
Dimensions | 225×430×500 | 185×331×400 | |||||
Power (kW) | 1 kW | 1 kW | |||||
Heating time | -40°C to 0°C: 2°C/min; 0°C to 100°C: 4°C/min; 30°C to 180°C: 3°C/min | ||||||
Cooling time | 0.8 °C/min | ||||||
Remarks | Flange size can be customized according to customer needs. | ||||||
