Products Description

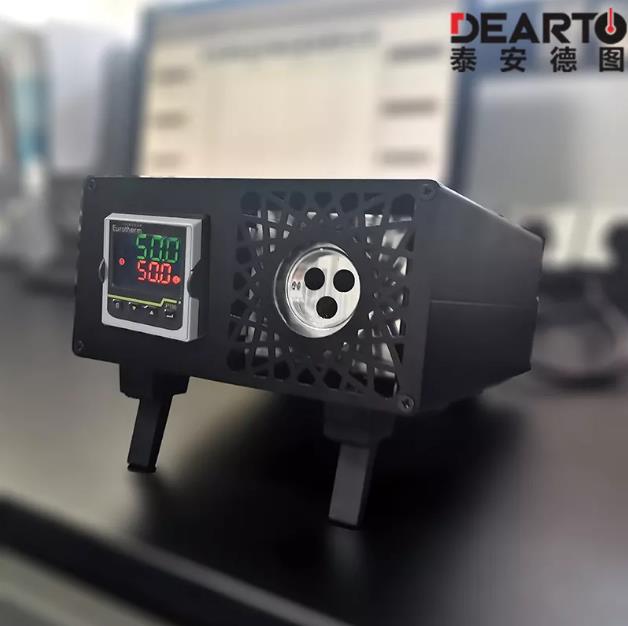

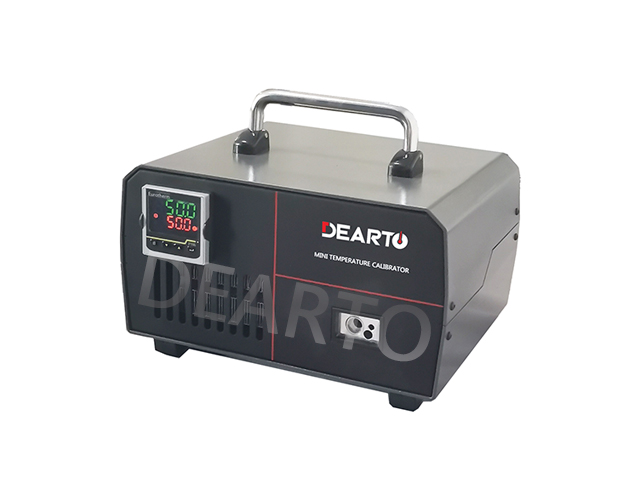

The DTG-ETC Micro Smart Dry Block Calibrator is Taian DEARTO micro handheld dry type temperature calibration furnace, small and portable equipment, durable, simple operation, high accuracy.

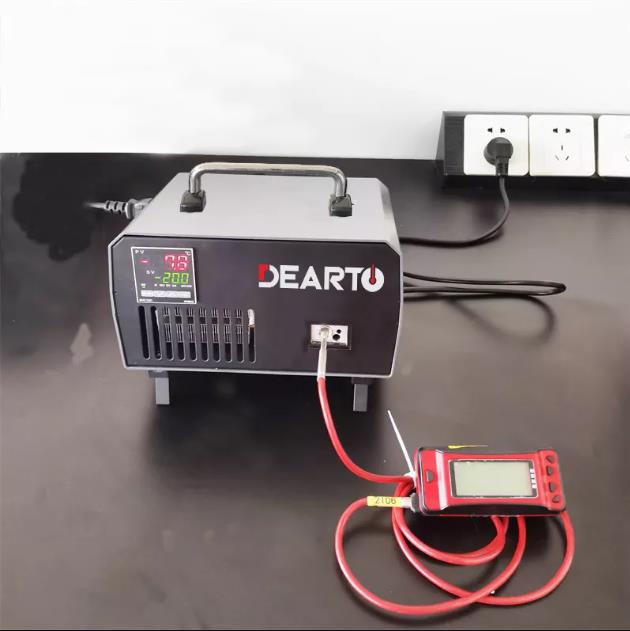

DT-ETC Micro dry well calibrator is especially suitable for the on-site calibration of thermal resistance, thermocouple, temperature switch with various diameters, and the calibration occasions where fast calibration is required and the sensor is not convenient to disassemble.
Product Features

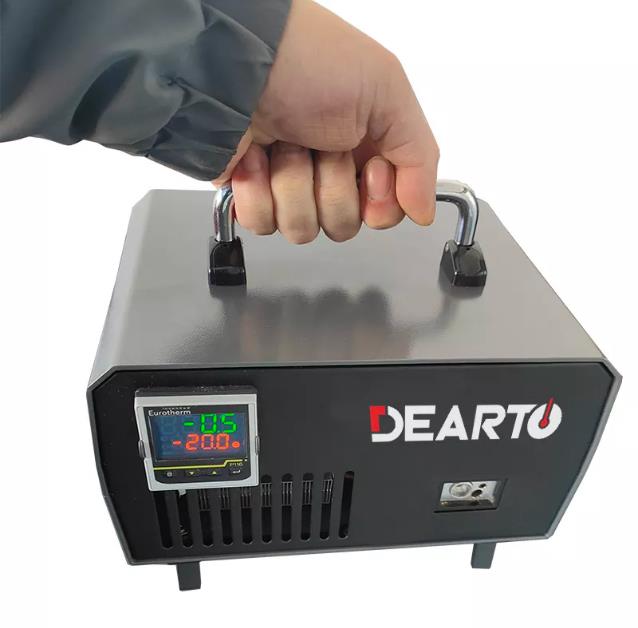

1. Small and light, strong and durable, only weighing about 3kg, convenient on-site measurement calibration;
2. Fast calibration, 15 minutes can be stable;
3. The sleeve is replaceable and supports custom jack for a variety of sensors
4. RS-485 communication interface
Product Paramenters
Model | ETC-150G | ETC-400G |
Temp. Range (℃) | -10 to 150 | 50 to 400 |
Resolution (℃) | 0.1 | 0.1 |
Stability (℃) | ±0.1 | ±0.1 |
Radial Uniformity (℃) | ≤0.2 | ≤0.2 |
Power (W) | 230 | 350 |
Insertion Depth (mm) | 120 | 110 |
Dimensions (mm) | 230×180×125 | 220×160×100 |
Hole sizes of standard insert (mm) | Φ4/ Φ6/ Φ7 | Φ4.5/ Φ6.5/ Φ8/ Φ10 |
The outer diameter dimensions for inserting the inspected sensor can be customized. | ||
Power supply | 220V / 50Hz ; 110V / 60HZ | |

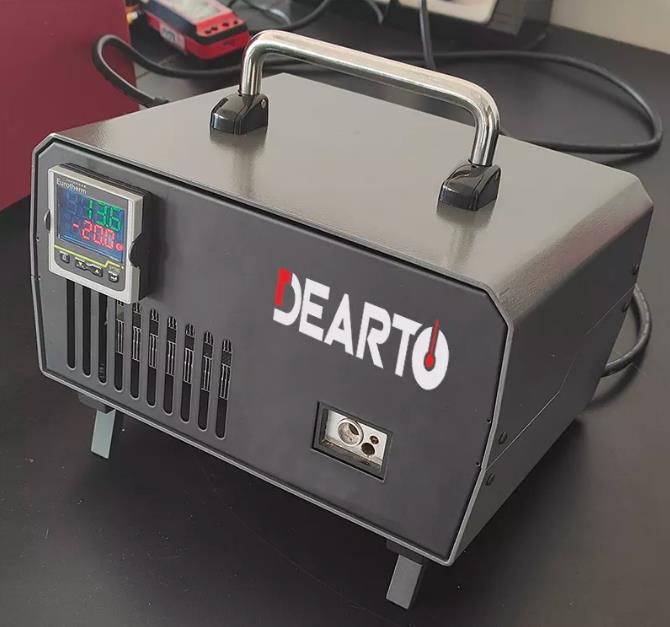

Product Shows
